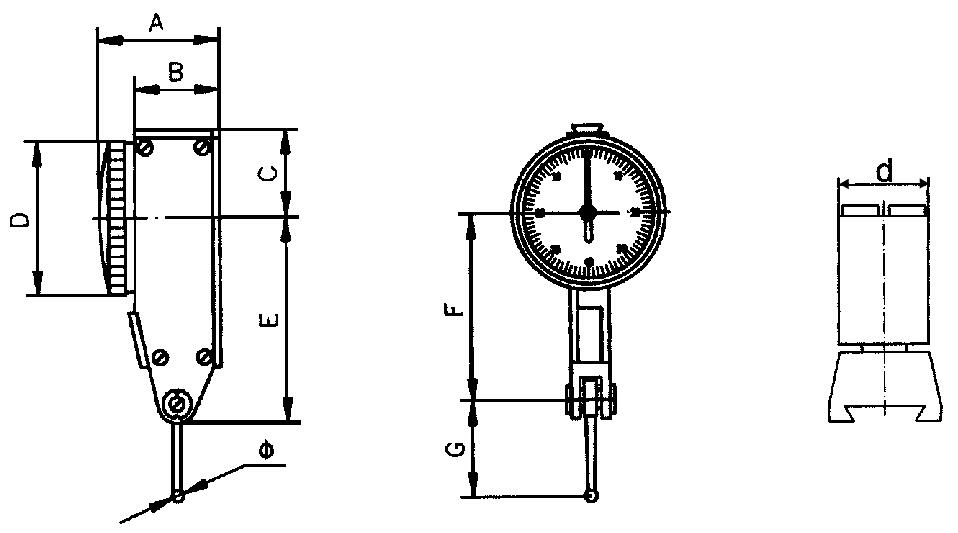

| Order No. | Range (mm) | Grad (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | 0 (mm) | d mm) |
| 3531.0001 | 0.1 | 0.0 | 24.0 | 17.3 | 16.5 | ⌀31 | 42.7 | 38.7 | 12.5 | 2.5 | 4/8 |
| 3531.0002 | 0.1 | 0.0 | 24.0 | 17.3 | 16.5 | ⌀31 | 42.7 | 38.7 | 9.5 | 2.5 | 4/8 |
| 3533.0001 | 0.1 | 0.0 | 24.0 | 17.3 | 16.5 | ⌀31 | 42.7 | 38.7 | 12.5 | 2 | 4/8 |
| 3533.0002 | 0.1 | 0.0 | 24.0 | 17.3 | 16.5 | ⌀38.4 | 42.7 | 38.7 | 9.5 | 2 | 4/8 |
| 3535.0001 | 0.1 | 0.0 | 24.0 | 17.3 | 16.5 | ⌀31 | 42.7 | 38.7 | 12.5 | 2.5 | 4/8 |
| 3537.0001 | 0.1 | 0.0 | 24.0 | 17.3 | 16.5 | ⌀38.7 | 42.7 | 38.7 | 12.5 | 2 | 4/8 |
