12.Test Indicators 3539.XXXX,3540.XXXX
Item Code:3539.XXXX,3540.XXXX
|
Order No.
|

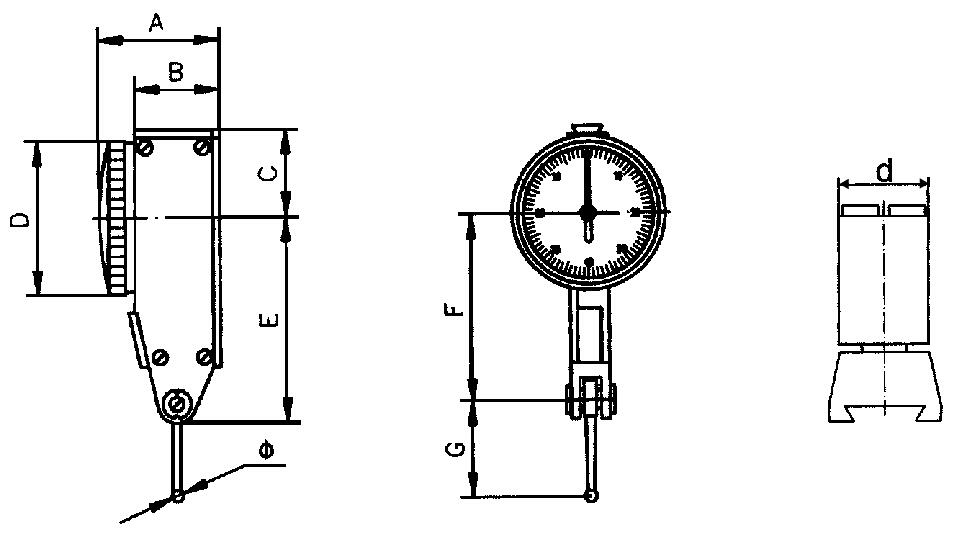

Range (inch)
|
Grad (inch)
|
A (mm)
|
B (mm)
|
C (mm)
|
D (mm)
|
E (mm)
|
F (mm)
|
G (mm)
|
$ (mm)
|
d (mm)
|
|
3539.0001
|
0-0.03
|
0.0005
|
24
|
17.3
|
16.5
|
⌀31
|
42.7
|
38.7
|
17.5
|
2.5
|
3.9/9.5
|
|
3540.0001
|
0-0.03
|
0.0005
|
24
|
17.3
|
16.5
|
⌀31
|
42.7
|
38.7
|
17.5
|
2
|
3.9/9.5
|
|
3541.0001
|
0-0.03
|
0.001
|
24
|
17.3
|
16.5
|
⌀31
|
42.7
|
38.7
|
17.5
|
2.5
|
3.9/9.5
|
|
3542.0001
|
0-0.03
|
0.001
|
24
|
17.3
|
16.5
|
⌀31
|
42.7
|
38.7
|
17.5
|
2
|
3.9/9.5
|
|
3543.0001
|
0-0.008
|
0.0001
|
24
|
17.3
|
16.5
|
⌀31
|
42.7
|
38.7
|
16
|
2.5
|
3.9/9.5
|
|
3544.0001
|
0-0.008
|
0.0001
|
24
|
17.3
|
16.5
|
⌀31
|
42.7
|
38.7
|
16
|
2
|
3.9/9.5
|
